Shape Memory Effect in Nitinol Tubes: From Manufacturing to Implantation

TL;DR — Key Takeaways in 30 Seconds

Shape Memory Effect (SME) in nitinol tubes enables medical implants to “remember” a pre-set shape and return to it when heated above the activation temperature (30-60°C). This revolutionary technology powers self-expanding stents used in cardiology and vascular surgery.

Critical Parameters:

• Composition: 50-51% nickel + 49-50% titanium
• Activation temperature (Af): 30-40°C for medical applications
• Shape recovery: up to 100% when heated above Af
• Critical: precision laser cutting without thermal damage

What is Shape Memory Effect

Nitinol (NiTi) is a unique intermetallic alloy capable of “remembering” a pre-defined shape. After mechanical deformation at room temperature, the material fully recovers its original geometry when heated above a critical transformation temperature.

Physics of the Process: Martensitic Transformation

The shape memory effect in nitinol is driven by reversible phase transformation between two crystalline structures:

Critical Transformation Temperatures

Nitinol tube behavior is defined by four characteristic temperatures:

• Ms (Martensite start): onset of martensite formation during cooling (typically 15-25°C)
• Mf (Martensite finish): completion of transformation to martensite (typically 0-15°C)
• As (Austenite start): beginning of reverse transformation during heating (typically 25-35°C)
• Af (Austenite finish): complete recovery of austenitic phase (typically 30-45°C)

For medical implants, it’s critical that Af temperature is below human body temperature (37°C) but above room temperature. This is achieved through precise control of alloy composition and heat treatment protocols.

Manufacturing Nitinol Tubes with Shape Memory Effect

1. Alloy Preparation

Nitinol tubes are manufactured from high-purity alloy with precise atomic ratio:

• Nickel (Ni): 50.0-51.0 at.% — determines transformation temperature
• Titanium (Ti): 49.0-50.0 at.% — provides structural stability
• Impurities: < 0.05% (oxygen, carbon, hydrogen strictly controlled)

Important: Changing nickel content by just 0.1% shifts Af temperature by approximately 10°C. Therefore, composition control is critical.

2. Tube Forming

Nitinol tubes are manufactured through:

• Hot extrusion at 800-900°C → primary shape
• Cold drawing through series of dies → achieving final diameter
• Intermediate annealing at 400-500°C → stress relief

3. Heat Treatment for Shape “Programming”

The key step in creating shape memory effect:

1. Fixing desired geometry: tube is secured on a mandrel with target shape
2. Heat treatment: heating to 450-550°C for 5-30 minutes
3. Quenching: rapid cooling in water

After this procedure, the tube “remembers” the shape defined by the mandrel. During subsequent deformations and heating above Af, it will strive to return to this exact shape.

4. Precision Laser Cutting of Pattern

Creating medical stents from nitinol tubes requires laser micromachining with critically important requirements:

Technology: Fiber lasers with 1064 nm wavelength and pulsed operation mode are used. Short pulses (nanoseconds) minimize thermal impact and preserve shape memory properties.

Equipment example: AQ-Laser precision laser machines provide nitinol tube cutting with ±10 μm accuracy and HAZ less than 15 μm.

Applications in Medical Implants

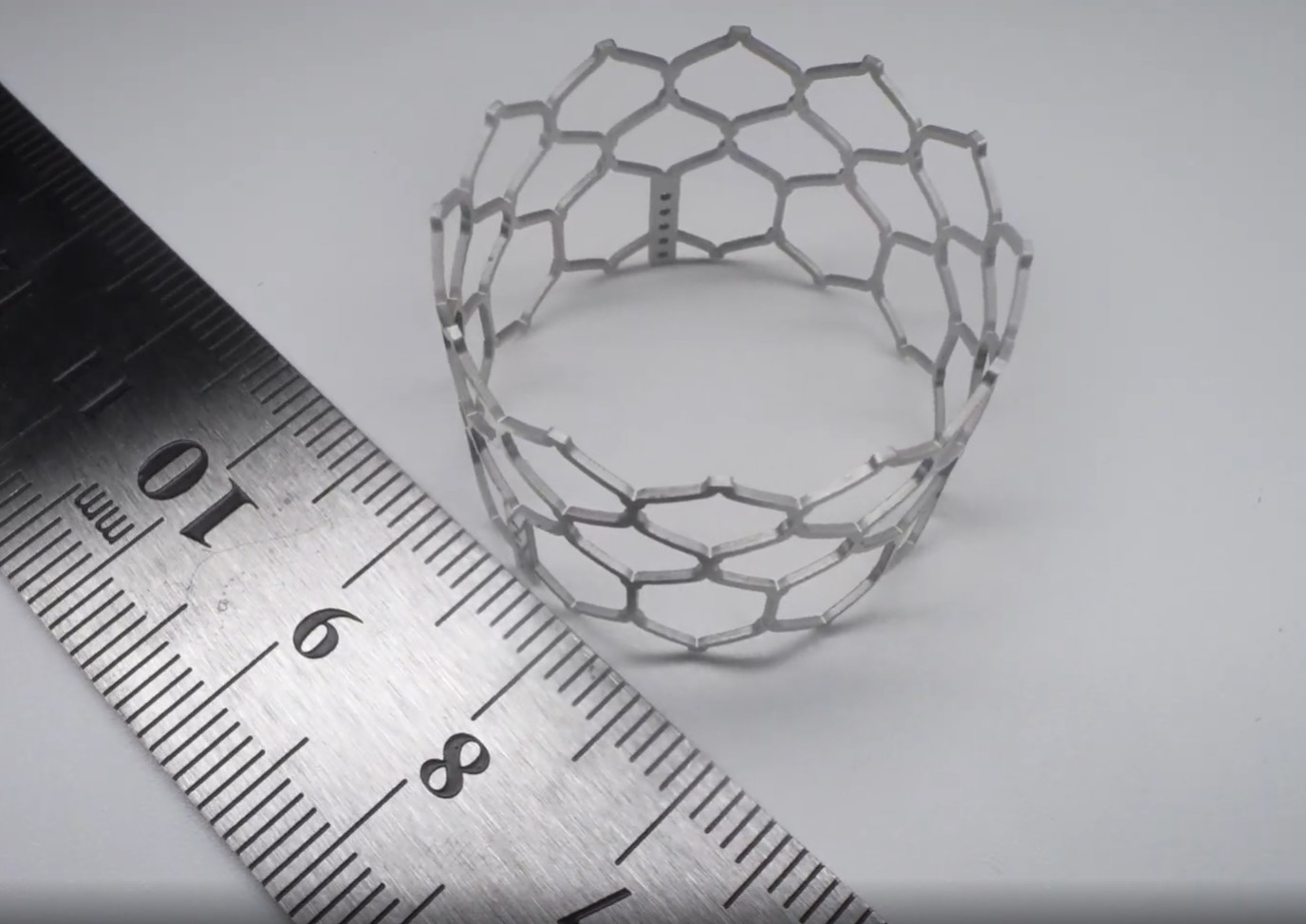

Self-Expanding Vascular Stents

The most important SME application — production of self-expanding stents for treating stenosis (narrowing) of arteries:

Working Principle:

1. Fabricação:

• Nitinol tube with 10-12 mm diameter is heat-treated to “program” expanded shape
• Laser cuts cellular pattern with struts 80-120 μm wide
• Af is set in range of 30-35°C

1. Delivery:

• At room temperature, stent is in soft martensitic phase
• Stent is crimped to 2-3 mm diameter and loaded into catheter
• Catheter is inserted through small arterial puncture

1. Implantation:

• At stenosis site, stent is released from catheter
• Body temperature (37°C > Af) initiates transformation to austenite
• Stent self-expands to “memorized” diameter of 10-12 mm
• Radial force of 0.5-1.5 N/mm presses stent against vessel wall

Product examples:

• Valve Stent Ni-Ti Ø7 mm — for transcatheter aortic valve implantation (TAVI)
• Mitral Stent Ni-Ti Ø5 mm — for mitral regurgitation correction

Other Medical SME Applications

Advantages of Nitinol with SME vs Alternatives

Key advantage: Self-expanding nitinol stents don’t require balloon inflation, reducing vessel trauma and complication risk during implantation.

Technical Challenges in Processing

1. Preserving SME Properties During Laser Cutting

Problem: Overheating nitinol above 600°C leads to:

• Formation of titanium oxides (TiO₂) on surface
• Alteration of transformation temperatures (Ms, Mf, As, Af)
• Reduction in fatigue strength
• Brittleness in heat-affected zone

Solution: Using pulsed fiber lasers with:

• Pulse duration of 10-100 nanoseconds
• Repetition frequency of 20-100 kHz
• Peak power of 5-20 kW
• Assist gas (nitrogen or argon) for oxidation protection

2. Controlling Transformation Temperatures

After laser cutting, final heat treatment is critically important:

1. Annealing at 400-450°C — restoring structure after laser thermal impact
2. Aging at 500°C (optional) — stabilizing phase transitions
3. DSC verification (Differential Scanning Calorimetry) — measuring actual Ms, Mf, As, Af temperatures

3. Electropolishing Surface Treatment

After laser cutting, nitinol tubes undergo electropolishing to:

• Remove oxide layer and microcracks
• Achieve Ra < 0.3 μm (critical for hemocompatibility)
• Form passive TiO₂ layer 3-10 nm thick

Process: Mixture of sulfuric (H₂SO₄) and hydrochloric (HCl) acids at 60-80°C, current density 0.5-2 A/cm².

Quality Control and Testing

Shape Memory Effect Verification

Standard tests:

1. DSC analysis:

• Measurement of Ms, Mf, As, Af with ±1°C accuracy
• Hysteresis verification (As – Mf difference should be 20-40°C)

1. Shape recovery test:

• Crimping stent to 2 mm at 20°C
• Placing in water bath at 37°C
• Measuring final diameter (should be 95-100% of original)

1. Radial force measurement:

• Stent expands to specified diameter
• Force required to crimp by 10-20% is measured
• Standard: 0.5-1.5 N/mm for vascular stents

1. Cyclic fatigue:

• 400 million compression-expansion cycles (simulating 10 years of heartbeats)
• No cracks or shape changes

Standards Requirements

• ASTM F2082: Standard Test Method for Determination of Transformation Temperature of Nickel-Titanium Alloys
• ASTM F2063: Standard Specification for Wrought Nickel-Titanium Shape Memory Alloys for Medical Devices
• ISO 5832-11: Implants for surgery — Metallic materials — Part 11: Wrought titanium-nickel alloy

FAQ — Frequently Asked Questions

1. Why are nitinol stents called “self-expanding”?

Due to shape memory effect, the stent “remembers” its expanded form (10-12 mm) after heat treatment. During implantation, body temperature (37°C) activates phase transformation, and the stent automatically expands to programmed diameter without need for balloon inflation.

2. Can shape memory be “reprogrammed”?

Yes, by performing repeat heat treatment at 450-550°C on a new mandrel. However, this is only possible before implantation. After installation in the body, the stent cannot be reformed without damage.

3. Does laser cutting affect shape memory?

Yes, if heat-affected zone (HAZ) exceeds 30-50 μm. Modern pulsed fiber lasers minimize HAZ to <20 μm, preserving SME properties. Critical control of pulse energy and cutting speed is essential.

4. What activation temperature is optimal for medical implants?

Af should be in range of 30-35°C. This is below body temperature (37°C) but above room temperature, ensuring:

• Safe storage and delivery in crimped state
• Guaranteed expansion during implantation
• Sufficient temperature margin (37°C >> Af)

5. How do nitinol stents differ from steel or cobalt-chromium stents?

Key differences:

• Nitinol: self-expanding, flexible, adapts to vessel pulsation. Used in peripheral arteries and valves.
• Steel/CoCr: balloon-expandable, rigid, high radial force. Used in coronary arteries.

Conclusion

Shape memory effect in nitinol tubes is a critically important technology that revolutionized minimally invasive surgery. Self-expanding stents based on SME provide:

• Delivery through small-diameter catheters (6-7 French)
• Atraumatic expansion without balloon
• Adaptation to patient anatomy
• Constant radial support of vessel

Technology success depends on three factors:

1. Precise composition control — determines transformation temperatures
2. Precision heat treatment — “programs” desired shape
3. Gentle laser cutting — preserves SME properties in finished product

AQ-Laser offers comprehensive solutions for manufacturing nitinol medical implants:

• Nitinol tubes with precise Af control (30-60°C)
• Máquinas a laser with HAZ <15 μm and ±10 μm accuracy
• Technical support in selecting cutting modes to preserve SME
