Thin-Wall vs Thick-Wall Nitinol Tubes: Selection for Different Applications
Wall Thickness Classification

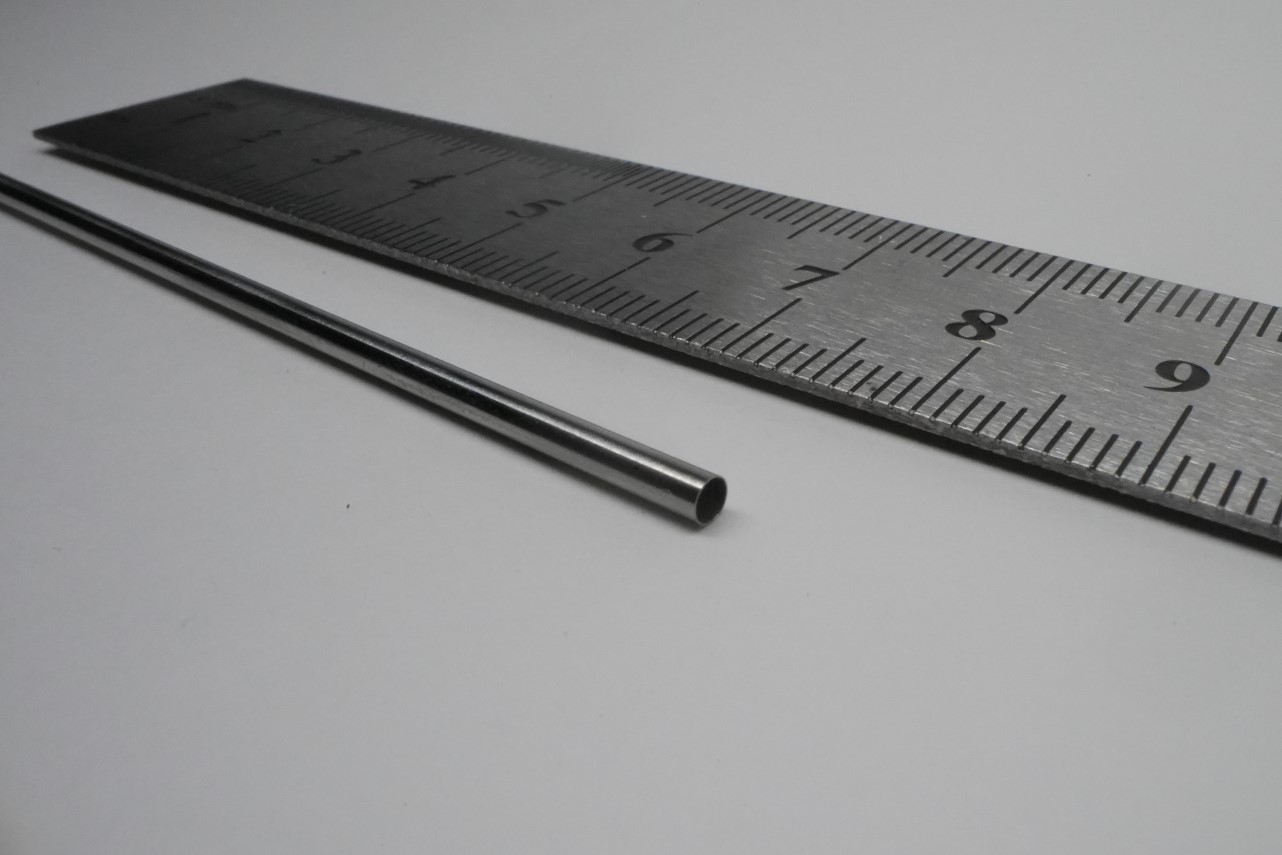

Thin-Wall Tubes (0.05-0.2mm)
Thin-wall Nitinol tubes are characterized by wall thickness ranging from 0.05mm to 0.2mm with outer diameters from 0.5mm to 8mm. The diameter-to-wall-thickness ratio for this category ranges from 10:1 to 40:1, providing exceptional flexibility while maintaining radial strength of 0.3-0.8 N/mm.
These tubes undergo specialized cold drawing processing with intermediate annealing at 400-500°C to achieve superelastic properties. The final transformation temperature Af is set within 15-25°C range for human vascular system applications.
Thick-Wall Tubes (0.5-1mm)
Thick-wall Nitinol tubes feature wall thickness from 0.5mm to 1mm with outer diameters from 3mm to 20mm. The diameter-to-wall-thickness ratio ranges from 3:1 to 20:1, providing high radial force of 1.5-3.0 N/mm and deformation resistance.
Manufacturing of thick-wall tubes involves hot extrusion at 800-900°C followed by mechanical processing. The transformation temperature Af can be tuned within -20°C to +60°C range depending on the application.
Comparative Properties Table
| Parameter | Thin-Wall (0.05-0.2mm) | Thick-Wall (0.5-1mm) |
|---|---|---|
| Outer Diameter Range | 0.5-8mm | 3-20mm |
| Radial Force | 0.3-0.8 N/mm | 1.5-3.0 N/mm |
| Minimum Bend Radius | 2-5mm | 10-20mm |
| Fatigue Life | 400M cycles at 6% strain | 100M cycles at 4% strain |
| Typical Applications | Coronary stents, neurovascular catheters | Orthopedic implants, structural components |
| Laser Cutting Method | Single-pass, speed 5-10 mm/s | Multi-pass, speed 1-3 mm/s |
Laser Cutting Considerations for Different Thicknesses
Cutting Thin-Wall Tubes
Laser cutting of thin-wall Nitinol tubes requires precise pulse energy control to minimize the heat-affected zone (HAZ). AQ-Laser’s fiber laser systems utilize 10-50 nanosecond pulses with 1-3 kW peak power to achieve HAZ less than 10 microns.
The cutting process is performed in an inert gas atmosphere (argon or nitrogen) at 2-4 bar pressure to prevent oxidation. Focal position is set at the material surface with ±0.02mm tolerance. Kerf width ranges from 15-25 microns, enabling strut structures with element width from 60 microns.
Cutting Thick-Wall Tubes
Thick-wall tubes require multi-pass cutting strategy with gradual penetration of 0.1-0.2mm per pass. Pulse duration of 100-500 nanoseconds with 5-10 kW peak power is utilized. Total cutting time for one stent from thick-wall tube is 3-5 minutes versus 30-60 seconds for thin-wall variant.
HAZ control employs an adaptive cooling system with coolant delivery directly to the cutting zone. This maintains HAZ within 20-30 microns even for 1mm wall thickness.
Mechanical Properties and Trade-offs
Radial Force vs Flexibility
An inverse relationship exists between radial force and tube flexibility. Thin-wall tubes provide superior flexibility with minimum bend radius of 2-5mm, critical for navigation through tortuous vascular anatomy. However, their radial force is limited to 0.3-0.8 N/mm, sufficient for vessel lumen support but inadequate for bone tissue structural support.
Thick-wall tubes generate radial force of 1.5-3.0 N/mm, necessary for orthopedic applications requiring resistance to loads up to 500N. The trade-off involves increased minimum bend radius to 10-20mm and reduced fatigue strength under cyclic loading.
Fatigue Strength
Thin-wall structures demonstrate superior fatigue strength due to more uniform stress distribution. At 6% cyclic strain, they withstand over 400 million cycles, equivalent to 10 years of pulsations in a coronary artery. Thick-wall tubes at 4% strain show fatigue limit of 100 million cycles, sufficient for most orthopedic applications with lower loading frequency.
Application Areas
Thin-Wall Tubes in Cardiology
Coronary stents manufactured from thin-wall Nitinol tubes with 2-4mm diameter and 0.08-0.12mm wall thickness provide optimal balance between delivery profile and radial support. After implantation at body temperature, the stent expands to nominal diameter, providing constant radial force of 0.5 N/mm to maintain arterial lumen.
Neurovascular microcatheters utilize ultra-thin-wall tubes with 0.5-1.5mm outer diameter and 0.05-0.08mm wall thickness. These devices must navigate vessels less than 2mm diameter with multiple bends up to 180°.
Thick-Wall Tubes in Orthopedics
Orthopedic bone staples are manufactured from thick-wall tubes with 5-10mm diameter and 0.8-1.0mm wall thickness. After implantation and body temperature activation, the staple generates compression force of 50-100N for bone fragment fusion. Thick wall ensures structural integrity under loads up to 500N.
Spinal implants require even greater strength, utilizing tubes with 10-15mm diameter and maximum 1mm wall thickness. These devices must withstand axial loads up to 2000N while maintaining controlled deformation capability.
Quality Control and Testing
Thin-Wall Tube Testing Methods
Quality control for thin-wall tubes includes optical microscopy at 200-500x magnification to verify cut quality and measure strut width. Surface profilometry is performed with 0.1 micron resolution to confirm Ra roughness <0.3 micron after electropolishing.
Radial force testing follows ISO 25539-2 radial compression method with force measurement at 50% deformation. Fatigue testing is conducted at 60 Hz in physiological saline at 37°C to simulate in vivo conditions.
Thick-Wall Tube Testing Methods
Thick-wall tubes are inspected using X-ray tomography to detect internal defects and measure wall thickness uniformity with ±0.01mm accuracy. Mechanical testing includes compression, bending, and torsion tests per ASTM F2516.
Additionally, microstructure analysis via EBSD (electron backscatter diffraction) confirms crystalline structure homogeneity and absence of undesired phases.
Selection Guidelines
Wall Thickness Selection Criteria
When choosing between thin-wall and thick-wall Nitinol tubes, consider the following factors:
- Anatomical location: Vascular applications require thin walls for minimal profile, structural implants need thick walls for strength
- Required radial force: <0.8 N/mm — thin-wall, >1.5 N/mm — thick-wall
- Гибкость: Bend radius <5mm — only thin-wall options
- Cyclic loads: >100M cycles — thin-wall preferred
- Delivery profile: Critical for vascular devices — choose thin walls
Design Optimization
Modern design approaches allow combining advantages of both types through variable wall thickness. AQ-Laser’s laser cutting technologies enable creating structures with local thickening in high-stress zones while maintaining thin walls in flexible sections.
Conclusion
The choice between thin-wall and thick-wall Nitinol tubes is determined by the balance between required mechanical properties and application constraints. Thin-wall tubes are ideal for minimally invasive vascular devices where flexibility and low profile are critical. Thick-wall variants are indispensable in orthopedics and structural implants requiring high strength and radial force.
Progress in laser cutting technologies and material processing continues to expand the application possibilities for Nitinol tubes in both categories. Understanding the fundamental differences and trade-offs between thin-wall and thick-wall constructions remains a key factor in successful next-generation medical device development.
