Biocompatibility of Nitinol Tubes: ISO 10993 Standards and FDA Requirements for Medical Implants

TL;DR — Key Takeaways in 30 Seconds

Nitinol biocompatibility depends on surface treatment that forms a protective TiO₂ oxide layer, preventing nickel ion release. Despite containing 50-51% nickel, properly processed nitinol meets all ISO 10993 requirements and has proven clinical safety across millions of implanted devices.

Critical Parameters:

Surface oxide layer: TiO₂, 3-20 nm thick
Nickel release rate: <0.2 μg/cm²/week (after electropolishing)
Surface roughness: Ra <0.3 μm for blood-contacting devices
Required testing: cytotoxicity, sensitization, implantation, hemocompatibility

Why Biocompatibility Matters for Nitinol

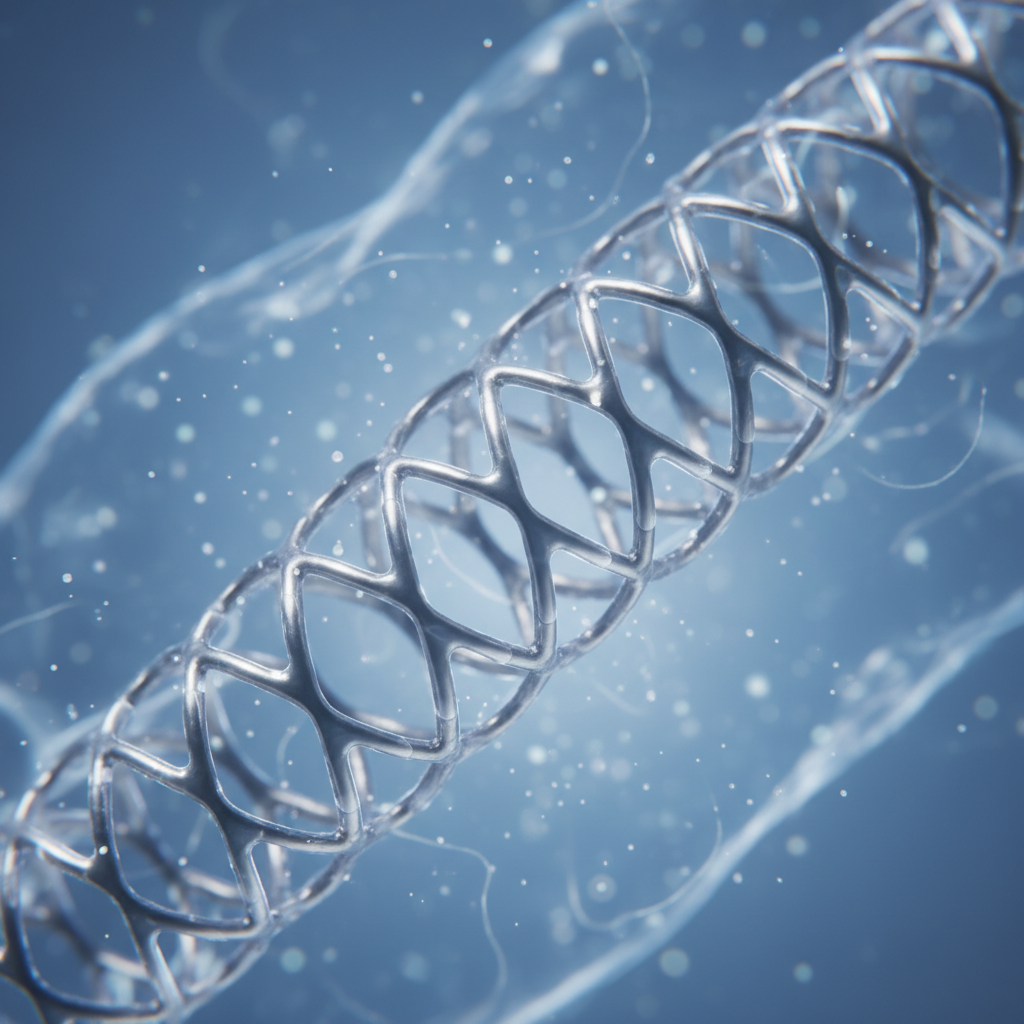

Nitinol tubes are widely used in medical implants due to their unique shape memory effect and superelasticity. However, the high nickel content (50-51 atomic %) raises concerns about biocompatibility — the material’s ability to perform safely within the human body.

This article explains how proper manufacturing transforms nitinol into a biocompatible material meeting stringent regulatory requirements.

The Nickel Paradox: High Content, Low Release

Nickel Content Comparison

Material	Nickel Content	Biocompatibilidad:
Nitinol (NiTi)	50-51 at.%	Approved for implants
Acero inoxidable 316L	10-14 wt.%	Gold standard
L605 Cobalt-Chromium	9-11 wt.%	Excellent
MP35N	33-37 wt.%	Excellent

Nickel is a known allergen affecting 10-15% of the population. How can a material with 50% nickel be biocompatible?

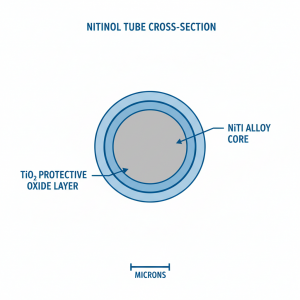

The Protective TiO₂ Oxide Layer

When properly treated, nitinol forms a stable titanium dioxide (TiO₂) layer that acts as a barrier between the nickel-rich bulk material and biological tissues:

Property	Value	Significance
Composition	Primarily TiO₂	Same as pure titanium surface
Thickness	3-20 nm	Sufficient barrier function
Structure	Amorphous/anatase	Chemically stable
Self-healing	Yes	Reforms if damaged
Stability	Inert in physiological pH	Long-term durability

This TiO₂ layer is the same oxide that makes pure titanium highly biocompatible — essentially creating a titanium-like surface on nitinol.

Surface Treatment Methods for Biocompatibility

1. Electropolishing (Primary Method)

Electropolishing is the most critical step for achieving nitinol biocompatibility. This electrochemical process removes the damaged surface layer created during corte por láser and promotes TiO₂ formation.

Process Parameters:

Parameter	Typical Value	Effect on Biocompatibility
Electrolyte	H₂SO₄ + HCl	Selective nickel dissolution
Temperature	60-80°C	Controlled reaction rate
Current density	0.5-2.0 A/cm²	Surface smoothness
Duration	1-10 minutes	Material removal depth
Voltage	10-30 V	Oxide layer quality

Results After Electropolishing:

Surface roughness: Ra <0.3 μm (from Ra 1-2 μm after laser cutting)
Nickel surface content: Reduced from 50% to 5-15%
TiO₂ layer: 5-10 nm, uniform coverage
Recast layer: Completely removed

2. Chemical Passivation

Acid treatment enhances the protective oxide layer:

HNO₃ passivation (ASTM F86): Standard method, 20-40% HNO₃ at 50-60°C for 30-60 minutes
Citric acid: Gentler alternative, environmentally friendly

3. Thermal Oxidation

Controlled heating creates thicker TiO₂ layer:

Temperature: 400-600°C
Duration: 10-60 minutes
Result: TiO₂ layer 50-200 nm thick

Important: Thermal oxidation must be performed after shape setting to avoid altering transformation temperatures.

ISO 10993: Biological Evaluation Requirements

Overview of Applicable Standards

ISO 10993 Part	Title	Application to Nitinol
Part 1	Evaluation framework	Test selection guidance
Part 4	Hemocompatibility	Cardiovascular stents
Part 5	Cytotoxicity	All devices
Part 6	Implantation	Permanent implants
Part 10	Sensitization	Nickel allergy assessment
Part 11	Systemic toxicity	Metal ion release effects
Part 12	Sample preparation	Testing methodology
Part 15	Degradation products	Corrosion analysis

Cytotoxicity Testing (ISO 10993-5)

Purpose: Evaluate whether material extracts cause cell death.

Methods:

Direct contact: Cells grown on material surface
Extract testing: Cells exposed to 72h extracts at 37°C
Agar diffusion: Indirect contact assessment

Acceptance Criteria: Cell viability >70% vs. negative control

Nitinol Performance: Properly surface-treated nitinol consistently achieves >90% cell viability.

Sensitization Testing (ISO 10993-10)

Due to high nickel content, sensitization testing is critically important for nitinol.

Methods:

Guinea Pig Maximization Test (GPMT): Most sensitive
Local Lymph Node Assay (LLNA): Mouse model alternative

Nitinol Performance with Proper Electropolishing:

Sensitization rate in GPMT: <5%
Clinical allergic reactions: <0.1% in post-market surveillance

Implantation Testing (ISO 10993-6)

Protocol:

Animal model: Rabbit or rat
Sites: Subcutaneous or intramuscular
Duration: Short-term (1-4 weeks), long-term (12-52 weeks)

Evaluation Parameters:

Fibrous capsule thickness
Inflammatory cell infiltration
Necrosis presence
Neovascularization

Nitinol Results: Thin fibrous capsule (<100 μm), no chronic inflammation at 52 weeks — comparable to titanium controls.

Hemocompatibility (ISO 10993-4)

For cardiovascular stents and blood-contacting devices:

Category	Tests	Purpose
Thrombosis	In vivo models	Clot formation assessment
Coagulation	PT, aPTT, fibrinogen	Clotting cascade activation
Platelets	Count, activation markers	Adhesion and aggregation
Complement	C3a, C5a, SC5b-9	Immune system activation

Surface Roughness Impact on Thrombogenicity:

Surface Finish	Ra Value	Risk Level
As-cut (laser)	1-3 μm	High
Mechanical polish	0.5-1 μm	Moderate
Electropolished	<0.3 μm	Low
Mirror finish	<0.1 μm	Minimal

Nickel Ion Release: Quantification and Limits

Testing Methodology (ISO 10993-12, -15)

Static Immersion Protocol:

Medium: PBS or Ringer’s solution
Temperature: 37°C ± 1°C
Duration: 1, 7, 14, 30, 60, 90 days
Analysis: ICP-MS or ICP-OES
Reporting: μg/cm²/week

Nickel Release by Surface Condition

Surface Treatment	Ni Release (μg/cm²/week)	Regulatory Status
As-cut (laser)	5-50	Unacceptable
Mechanical polish	1-5	Borderline
Electropolished	0.1-0.5	Acceptable
Electropolished + passivated	<0.2	Optimal

Safety Margin Calculation

For typical coronary stent (surface area ~2 cm²):

Tolerable daily intake (TDI) for nickel: ~35 μg/day (70 kg adult)
Maximum acceptable release from device: <0.5 μg/day
Achieved with electropolishing: 0.02-0.1 μg/day
Safety margin: 5-25x below threshold

FDA Regulatory Pathways

Device Classification

Device Type	FDA Class	Pathway	Examples
Peripheral stents	Class II	510(k)	Iliac, femoral, carotid
Guidewires	Class II	510(k)	Cardiovascular access
IVC filters	Class II	510(k)	Vena cava filters
Coronary DES	Class III	PMA	Drug-eluting stents
TAVR frames	Class III	PMA	Valve stents

510(k) Biocompatibility Requirements

Material characterization: Composition per ASTM F2063
Surface analysis: XPS, SEM, profilometry
ISO 10993 testing: Based on contact type and duration
Comparison: Substantial equivalence to predicate device
Corrosion testing: ASTM F2129 (Epit >+300 mV vs. SCE)

Key ASTM Standards

Standard	Title	Requirement
ASTM F2063	Nitinol composition	Ni 54.5-57.0 wt.%, impurities controlled
ASTM F2129	Corrosion testing	Epit, icorr measurement
ASTM F2082	Transformation temperature	DSC method for Ms, Mf, As, Af

Quality Control for Biocompatibility

Incoming Material Inspection

Test	Method	Acceptance
Composition	ICP-OES	Per ASTM F2063
Transformation temp	DSC	Af <35°C (typical)
Inclusions	Metallography	<10 μm, <0.05% area

Post-Electropolishing Verification

Parameter	Method	Acceptance Criteria
Surface roughness	Profilometry	Ra <0.3 μm
Surface composition	XPS	TiO₂ dominant, Ni <15%
Visual inspection	Microscopy	Mirror finish, no pitting
Corrosion resistance	ASTM F2129	Epit >+300 mV vs. SCE

Batch Release Testing

Cytotoxicity: Every lot or skip-lot (based on validation)
Nickel release: Periodic verification
Surface analysis: Per sampling plan

Clinical Evidence: Long-Term Safety

Published Data Summary

Peripheral Vascular Stents:

Registry data: >100,000 patients
Allergic reaction rate: <0.1%
Nickel sensitivity correlation: No increase

TAVR Valve Frames:

Clinical trials: >50,000 patients
Nickel-related complications: None reported

Patients with Known Nickel Allergy:

Current evidence indicates:

Cutaneous nickel allergy ≠ systemic reaction to properly passivated implants
Most nickel-sensitive patients can safely receive nitinol devices
Preoperative patch testing recommended for highly sensitized individuals

FAQ — Frequently Asked Questions

1. Is nitinol safe for patients with nickel allergy?

For most patients with cutaneous nickel allergy (contact dermatitis from jewelry), properly electropolished nitinol implants are safe. The TiO₂ surface layer prevents nickel-tissue contact. Clinical studies show no increased adverse events in nickel-sensitive patients.

2. How long does the protective oxide layer last?

The TiO₂ layer is thermodynamically stable and self-healing. Long-term implant retrievals (10+ years) show intact oxide layers with no significant degradation.

3. Does electropolishing change shape memory properties?

No. Electropolishing removes only 5-20 μm of surface material. The shape memory effect and transformation temperatures remain unchanged.

4. What surface roughness is required for cardiovascular devices?

Ra <0.3 μm is recommended for blood-contacting devices to minimize platelet adhesion and thrombosis risk. For non-blood-contacting implants, Ra <0.8 μm is typically acceptable.

5. Which sterilization methods are compatible with nitinol?

EtO (Ethylene Oxide): Preferred, no effect on properties
Gamma radiation: Up to 50 kGy acceptable
E-beam: Similar to gamma
Steam autoclave: Not recommended (oxidation risk)

Conclusion

Biocompatibility of tubos de nitinol depends critically on proper surface treatment. Despite 50-51% nickel content, electropolished nitinol forms a protective TiO₂ layer that:

Reduces nickel ion release to <0.2 μg/cm²/week
Passes all ISO 10993 biocompatibility tests
Demonstrates excellent long-term clinical safety
Enables unique shape memory properties unavailable in other materials

Key Success Factors:

Electropolishing: Ra <0.3 μm with verified TiO₂ formation
Quality Control: Consistent processes, documented validation
Testing: Complete ISO 10993 battery for device classification
Documentation: Comprehensive technical file for regulatory submission
